Anti-stick MDO Preheating Roller with Teflon Coating and Q345 Material for Heat Resistance up to 260°C

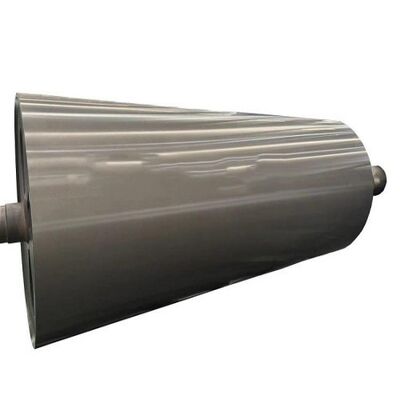

Großes Bild : Anti-stick MDO Preheating Roller with Teflon Coating and Q345 Material for Heat Resistance up to 260°C

Produktdetails:

Herkunftsort:	China
Markenname:	HUATAO
Zertifizierung:	ISO
Modellnummer:	Vorwärmerolle

Zahlung und Versand AGB:

Min Bestellmenge:	1 PC
Preis:	2000USD/pc-5000USD/pc
Verpackung Informationen:	Holzkiste
Lieferzeit:	5-8 Wochen
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	100 PCs/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Anti-Klebstoff-Vorheizwalze mit kundenspezifischer Teflonbeschichtung	Schlüsselwörter:	Heizrolle, Vorheizrolle, Teflonvorheizrolle
Schalentechnik:	Zweifachkonstruktion aus Q345	Fließsystem:	Einweg Eingang und Ausgang, Kanäle zwischen Innen- und Außenschlauch getrennt mit geschweißten Spira
Aufbau von Scheiben/Wellen:	Schrumpf- und Schweißwellen und Seitenscheiben aus Q345	Beschichtung:	Hartchrom, Teflon, Keramik, Wolframkarbid
Temperatur:	Bis zu 260°C	Rauheit:	7 bis 10 RZ
Hervorheben:	Teflonbeschichtete MDO-Vorheizrolle , Wärmebeständige Industriewalzen , Rollen aus Klebstoff Q345

Anti Stick Pre Heating Roller With Customized Teflon Coating

Product Description

The MDO Preheating Roller is a critical component in the MDO unidirectional stretching production line. It heats plastic film to optimize physical property changes during longitudinal stretching, enhancing the film's mechanical properties and transparency. This heating process improves tensile strength, stiffness, durability, and stability while significantly increasing transparency and gloss for greater commercial value. Additionally, it enhances heat sealing performance, printing quality, and overall product processability.

Key Features

Non-stick properties: Teflon coating prevents adhesion of virtually all substances, even with very thin films.
Heat resistance: Withstands temperatures up to 300°C briefly and operates continuously between 240°C-260°C. Maintains stability across extreme temperatures without brittleness or melting.
Abrasion resistance: Low friction coefficient (0.05-0.15) that remains stable under varying loads.
Chemical resistance: Nearly impervious to chemical corrosion, protecting components from chemical damage.

Applications

Rubber & plastic industry, textile manufacturing, paper production, food processing, chemical processing, and P/C/B electronic electroplating industries.

Technical Specifications

Specification	Details
Shell construction	Double-shell construction from Q345
Flow-system	One way enter and exit, channels between inner and outer tube separated with welded leading Spirals
Disc/Shaft construction	Shrinked and welded shafts and side discs from Q345
Coating	Hard chrome, teflon, ceramic, tungsten carbide
Balancing	Grade 2.5
Roughness	7-10 Rz
Temperature	Up to 260°C

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving the paper, corrugated board, rubber & plastic, and nonwoven fabric industries. Our products are exported to 96+ countries with an excellent reputation for quality and reliability.

Industry Specializations

Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, calender rollers
Plastic & Rubber: Chill rollers, MDO rollers, cooling rollers, corona treatment rollers, coating drums
Nonwoven Fabric: Cylinder rollers, doffer rollers, carbon fiber guide rollers, embossing rollers

We understand each customer's unique requirements and match them with optimal solutions from our network of quality manufacturers. Our commitment ensures customers purchase and use Huatao products with confidence, backed by ongoing support.
