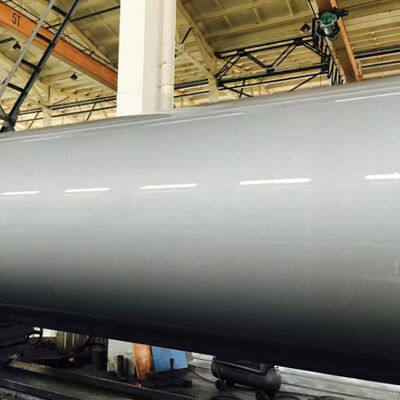

Spiral Flow System Casting Roller with Dynamic Balancing G2.5 and Large Diameter Φ1600mm for Precision Cooling

Großes Bild : Spiral Flow System Casting Roller with Dynamic Balancing G2.5 and Large Diameter Φ1600mm for Precision Cooling

Produktdetails:

Herkunftsort:	China
Markenname:	HUATAO
Zertifizierung:	ISO CE
Modellnummer:	Ht-CR01

Zahlung und Versand AGB:

Min Bestellmenge:	1 STK
Preis:	2000USD/pc-5000USD/pc
Verpackung Informationen:	Holzkiste
Lieferzeit:	45 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100 Stück/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Matt Surace Vorbeschichtung mit Gießfilm	Schlüsselwörter:	Gießwalze, Kühlwalze
Zylinderheit und Koaxialität der Walze:	≤0.005mm	Durchmesser der Walze::	innerhalb von Φ1600 mm
Oberflächenbehandlung:	polierter Spiegel, superfeiner Spiegel, mattes/mattes Spiegel, Antihaftwalze	Gesamtdeformation:	< 0,05 mm bei voller Last
Dynamisches Balancieren:	G2.5	Fehler bei der Oberflächentemperatur der Walze:	± 0,5 bis 1 °C;
Hervorheben:	Industriegusswalze mit dynamischer Auswuchtung , Präzisionskühlspiralschneckewalze , Industriewalze mit großem Durchmesser Φ1600mm

Spiral Flow System Casting Roller Matt Surface CPP CPE

Introduction of Casting Roller

The casting roller serves as the primary cooling component within the lamination system, employed to bond materials like LDPE, PP, EVA, EAA, LLDPE, EMA, and EMAA onto BOPP or BOPET films. This casting roller utilizes a jacketed spiral cooling water heat exchange configuration, enabling precise control of the roller surface temperature within a ±1°C range.

This design ensures uniform heat dissipation during the lamination process, critical for maintaining material adhesion and film quality. The spiral cooling structure enhances thermal conductivity by promoting turbulent water flow, which efficiently removes heat generated during the extrusion and bonding of thermoplastic layers.

Characteristics of Casting Roller for Casting Film

Parameter	Specification
Roller diameter	within Φ1600mm
Cylindricity and coaxiality	≤0.005mm
Thickness of the coating	50~80um
Roller surface temperature error	±0.5~1℃
Surface Treatment	matt surface
Running speed	800 meters/min
Overall deformation	<0.05 mm at full load
Dynamic balancing	Q=3.2 during operation

Producing qualified cast films requires adjusting the process on raw materials and mastering the processing conditions, with temperature having significant impact on film performance. The suitable production temperature is 230~250℃.

Key Specifications

Roughness Ra0.005 (smoothness level 14 or above)
No vibration lines, streaks, or roughening lines
Straightness, runout, coaxiality ≤0.005mm
Cooling or heating temperature difference ≤±1℃
Thermal deformation ≤0.01mm
After quenching, roller surface hardness is HRC55~58
After hard chromium plating, heat treatment is HRC65 or above

Application

BOPP/BOPET film laminating with LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA

About Huatao Group

Founded in 2008, Huatao Group is a professional supplier of various rollers for paper, corrugated board, rubber & plastic industry, and nonwoven fabric industries with over 15 years of experience.

Our Products Include:

Paper Industry: forming roller, vacuum couch roller, dandy roller, press roller
Plastic & Rubber: chill roller, MDO rollers, cooling roller, corona treater roller
Nonwoven Fabric: cylinder roller, doffer roller, carbon fiber guide roller

Our products have been exported to more than 96 countries with excellent reputation. We understand each customer's unique requirements and provide matching superior quality products with reliable service.
