Flow Channel Calender Roller with 45# Material and HRC 65 for Plastic Sheet Processing

Großes Bild : Flow Channel Calender Roller with 45# Material and HRC 65 for Plastic Sheet Processing

Produktdetails:

Herkunftsort:	China
Markenname:	HUATAO
Zertifizierung:	ISO CE
Modellnummer:	HTCR

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	2000USD/pc-5000USD/pc
Verpackung Informationen:	Holzkiste
Lieferzeit:	45 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100 PCs/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Flusskanalkalenderrolle für Kunststoffbleche	Schlüsselwörter:	Kalenderrolle
Material:	45#	RA:	0.005um
HRC:	65	Geradlinigkeit:	≤ 0,005 mm.
Durchbruch:	≤ 0,005 mm.	Koaxialität:	≤ 0,005 mm.
Hervorheben:	45# Material Industriewalze , HRC 65 Kunststofffolienwalze , Flusskanalkalenderrolle

Flow Channel 45# Calender Roller HRC 65 For Plastic Sheet

Flow Channel Calender Roller for Plastic Sheet

Introduction

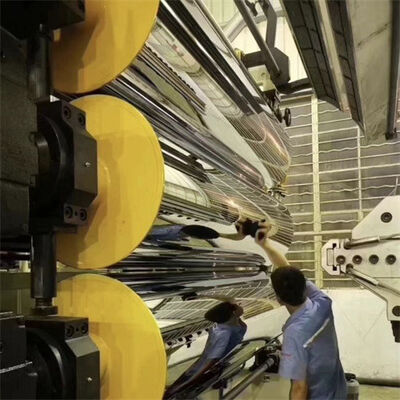

Plastic sheet calendering rollers typically utilize a three-roller system. During operation, plastic material is fed between the rollers, where rotation and extrusion gradually stretch the material to achieve the required thickness and width specifications.

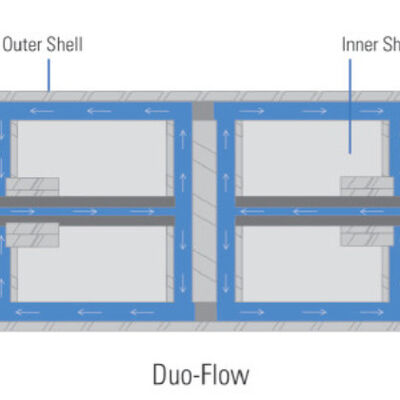

Structure

Available in various structural designs including:

Inner tank spiral flow channel
Jacket type configurations

Processing

Manufactured using advanced processes:

Precision heat treatment including quenching and tempering
Turning, assembly, and red sleeve hot-fitting with welding
Strength treatment, quenching, and fine turning
Fine grinding with hard chromium plating
Super fine grinding and precision polishing using American 3M abrasives

Technical Parameters

Parameter	Specification
Roller Body Material	45#
Journal Material	45#
Coaxiality	≤0.005mm
Surface Treatment	Mirror finish
Roughness	Ra0.005

Applications

Ideal for processing various materials including:

Plastic sheets (PVC, ABS, PP, PT, PE, PC)
Plates, films, and paper products
Surface calendering of leather, metal, cloth, and decorative materials

About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of expertise serving:

Paper Industry

Forming rollers, vacuum couch rollers, press rollers, dryer cylinders, calender rollers, and embossing rollers.

Plastic & Rubber Industry

Chill rollers, MDO rollers, corona treatment rollers, carbon fiber rollers, and coating drums.

Nonwoven Fabric Industry

Cylinder rollers, doffer rollers, embossing rollers, and cooling rollers.

Our products are exported to 96+ countries with a strong reputation for quality and reliability. We specialize in custom solutions tailored to specific customer requirements, ensuring superior performance and long-term satisfaction.
