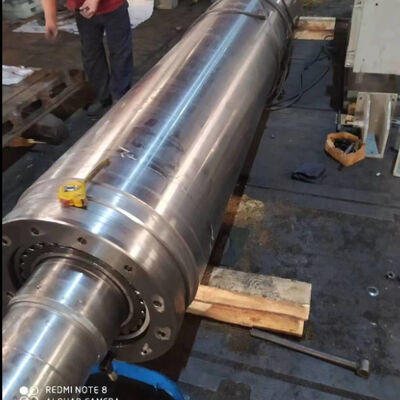

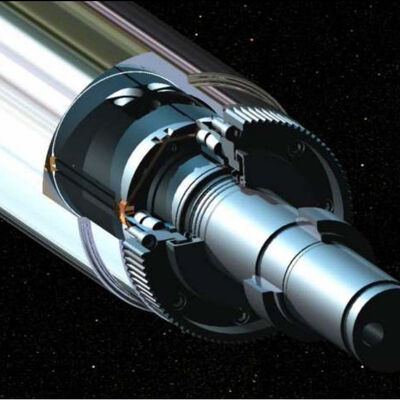

Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Großes Bild : Oil Circulation Flow System Soft Nip Calender Roller with 91±2 Shore D Hardness and Ra0.1 um Surface Roughness

Produktdetails:

Herkunftsort:	China
Markenname:	HUATAO
Zertifizierung:	ISO CE
Modellnummer:	Ht-SCR01

Zahlung und Versand AGB:

Min Bestellmenge:	1Stk
Preis:	2000USD/pc-5000USD/pc
Verpackung Informationen:	Holzkiste
Lieferzeit:	60 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	50 PCs/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Ölzirkulationsstromsystem Weicher Nip Calender Roller Kautschuk beschichtet	Schlüsselwörter:	Weicher Nip Calender Roller
Härte der Abdeckung:	91±2 Ufer D	Decktyp:	Kombination CHINA Andritz Jalon Gelb
Innere Schale:	Schärfen von Ra0.4	Rauheit der Walzenoberfläche:	Ra0,1 um
Rollenoberflächendurchbruch:	≤0,02 mm	Schalenmaterial:	Schmiede Stahl 45#
Hervorheben:	Industrielles Ölumlaufsystem für Walzen , Soft-Nip-Kalanderwalze 91 Shore D , Kalanderwalze Oberflächenrauheit Ra0.1

Oil Circulation Flow System Soft Nip Roll Calender Rubber Coated

Product Description

The Rubber Coated Calender Roller with Oil Circulation Flow System forms a nip that replicates the surface of tempered rolls with hard surfaces, enhancing paper properties. Custom rubber coatings are available, including STOWE, Andritz Jalon Yellow, and others, with guaranteed quality.

Technical Specifications

Specification	Details
Shell material	Forge steel 45#
Roll face length	Customized
Cover width	Customized
Cover thickness	Customized
Cover hardness	91±2 Shore D
Cover type	Combination CHINA Andritz Jalon Yellow
Shell inner	Honing Ra0.4
Roll surface runout	≤0.02mm
Metal seals	Germany
Roll balancing	900 m/min(G1.0)
Drive type	Toothed belt drive AT20, Z=63

Bearing Specifications

Spherical roller bearing: 2pcs
Bearing type: SKF/FAG
Joint ball bearing & Bearing house: 1 set (drawing supplied by client)
Static test after roll assembly for leakage detection
Max test pressure: 10bar
Dynamic simulation after roll assembly for deformation detection

Differential Pressure Regulation Head

Function: Regulates pressure in the Swimming Roll to control correct deflection
Equipment location: Front side of the Swimming Roll
Proportion regulation air cell: 1pc
Piston rod: 1pc
Bearing (INA): 1pc
Seal parts: Germany

Assembly Tools

Disassembly and installation tool of swimming roll: 1 set
Guide Sleeve: 1pc
Guide screw: 1 Set

About Huatao Group

Founded in 2008, Huatao Group is a professional supplier of various rollers for paper, corrugated board, rubber & plastic, and nonwoven fabric industries with over 15 years of experience.

Our Product Range

Paper Industry: Forming roller, vacuum couch roller, dandy roller, Breast Roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller
Plastic & Rubber: Chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller
Nonwoven Fabric: Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller

With a commitment to innovation and reliability, our products are exported to over 96 countries. We understand unique customer requirements and match them with superior quality products from our network of domestic factories, ensuring customers buy and use HUATAO products with confidence.
